Filtering Data in the Information Grid
To filter the data output in the Information grid of Edit ROW Detail, follow these steps:
1 Click Data Entry > Edit ROW Detail.
2 Click the
Information tab
, then the
Options tab
to open the
Options page (
Figure 4-46).

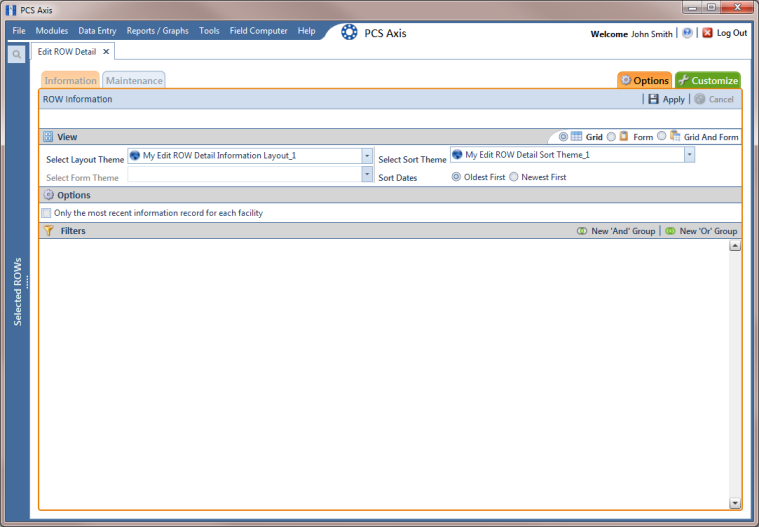

Figure 4-46. Options/Information Grid
3 To include only the most recent information record for each pipeline, select the check box Only the most recent information record for each facility. This option uses the Effective Date to filter the data output.
Note: When using the
Filters group box to apply additional filters to the data output, the most recent information record is found first, and then all other filters are applied to the data output. For more information about filters, see
Adding an AND Filter Group and
Adding an OR Filter Group.
4 Click
Apply to save and apply changes and then return to the
Information grid. To cancel changes, click the
Options tab
or
Cancel to return to the grid.
