Adding an AND Filter Group
An AND filter group is a named set of one or more filters that affect the data output in the Edit ROW Detail grid. Adding an AND filter group produces a subset of records that meet all filter conditions. PCS Axis processes filters in a filter group in descending order beginning with the filter at the top of the filter group.
To add an AND filter group, follow these steps:
1 Select one or more pipeline segments in the
Select ROWs window. Click
Save to close the window (
Figure 4-31).
2 Click
Data Entry >
Edit ROW Detail to open the
Edit ROW Detail window (
Figure 4-32).
Note: Clicking the Selected ROWs bar collapses the Selected ROWs panel allowing you to view more of the grid. Clicking the Selected ROWs bar again expands the Selected ROWs panel.
3 Select the grid you want to work with by clicking the
Information tab
or the
Maintenance tab
.
4 Click the
Customize tab
then the
Filters button
to open the
Filters page (
Figure 4-40).
5 Click
New ‘And’ Group to open the filter properties group box.

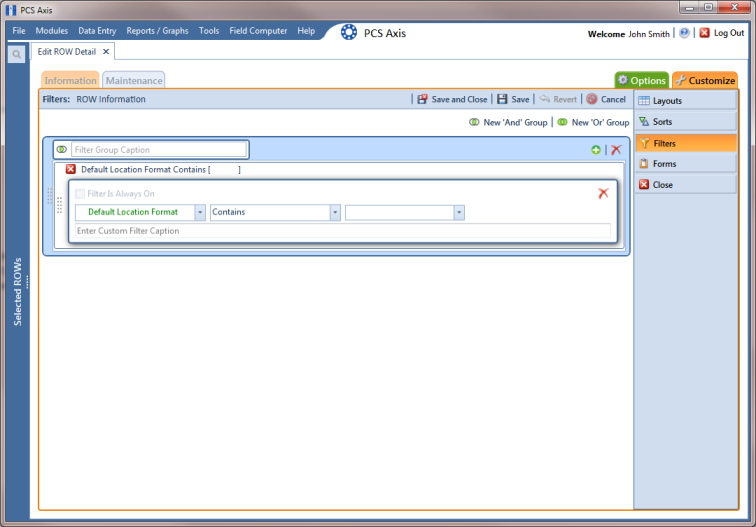

Figure 4-40. Filters
6 Type a name for the filter group in the field Filter Group Caption.
7 Use filter selection fields to set up filter criteria. Select a PCS Axis field, operator, and one or more filter conditions.
8 If you want the filter to remain on for all sessions of the data entry grid, select the check box Filter is Always On. When this check box is not selected, toggle the filter on and off in the Options page using the filter’s check box.
9 Type a name for the filter in the field Enter Custom Filter Caption.
10 If you want to set up additional filter criteria for the filter group:
a Click
Add to open another filter properties group box. Then click the
edit icon to display selection fields.
b Type a name for the filter in the field
Enter Custom Filter Caption. Then repeat
step 7 through
step 9 to set up filter criteria.
11 To move a filter to a different position in the filter group or a filter group to a different position in a group of filters:
a Point the mouse at the filter handle
to change the cursor to a vertical resize cursor
.
b Drag and drop the filter or the filter group to a new location.
Note: PCS Axis processes filters in descending order beginning with the filter at the top of the filter group.
12 Click
Save.
Note: Clicking the
edit icon for a particular filter opens that filter’s property settings allowing you to change settings as needed.
13 To apply one or more custom filter groups to the data entry grid of
Edit ROW Detail, follow these steps (
Figure 4-41):
a Click the
Options tab
to open the options page.
b Click the check box for each filter you want to apply.
c Click
Apply to save changes and return to the data entry grid. To cancel changes, click the
Options tab
or
Cancel to return to the data entry grid.

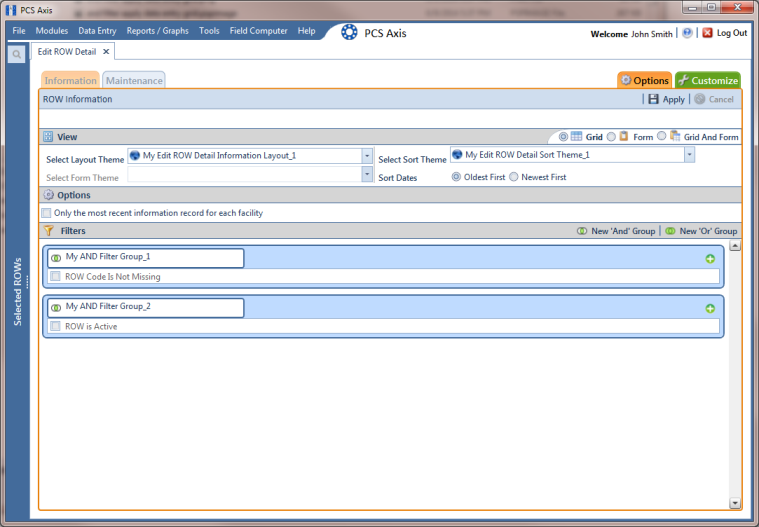

Figure 4-41. Options
