Running Telluric Compensation
Running telluric compensation takes place in the Telluric workspace of the Edit ISM Data grid. After receiving Allegro survey files and importing and evaluating SDL survey files, use the information in this section to run telluric compensation for inspections in a close interval (CI) survey that include telluric effects and require compensation.
Complete the following steps:
1 Select the pipeline segment you want to work with in the Select ROWs window. Then click Save to close the window (Figure 14-27).
2 Open the CIS data grid in Edit ISM Data. Click Data Entry > Edit ISM Data > CIS button .
3 Select a survey folder with CI inspections that you want to run compensation. Click the down arrow in the field Selected Continuous Survey and select a CI survey folder in the selection list (Figure 14-29).

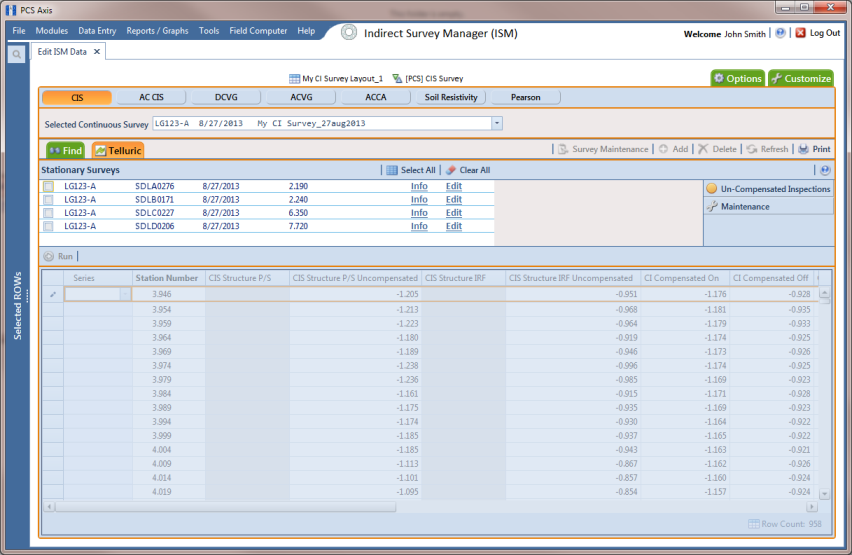

4 Click the Telluric tab to open the Telluric workspace (Figure 14-32).
A list of stationary data logger (SDL) survey files related to the selected pipeline segment and CI survey display in the Stationary Surveys group box of the Telluric workspace (Figure 14-32).
5 If you want to view a telluric summary of an SDL survey listed in the Stationary Surveys group box, click the Info link to open the Stationary Telluric Info window. For a description of this window, see View Telluric Summary Information.
6 If you want to view voltage measurements associated with an SDL survey listed in the Stationary Surveys group box, click the Edit link to open the Stationary Survey Maintenance window. A description of this window is available in the section entitled Using Stationary Survey Maintenance.
Figure 14-32. Telluric Workspace
7 To run telluric compensation, follow these steps:

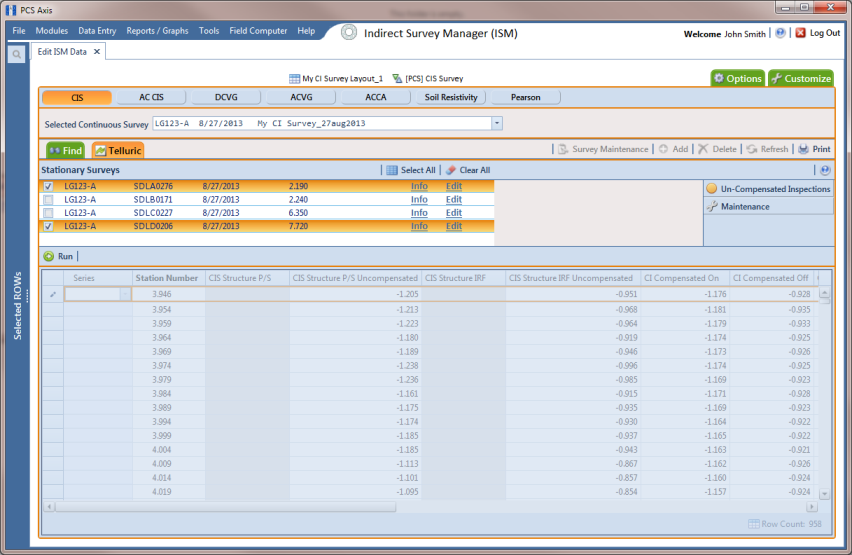

a Select the SDL upstream/downstream data set pair to use in the compensation run. Click the check box associated with the upstream and downstream SDL survey files (Figure 14-33).
Figure 14-33. Telluric Workspace

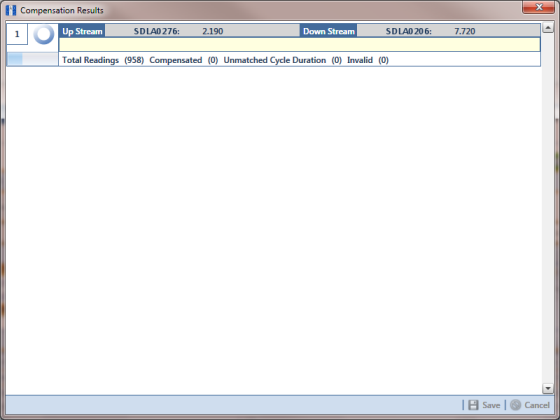

b Click Run to begin the compensation process and open the Compensation Results window (Figure 14-34).
Figure 14-34. Compensation Results

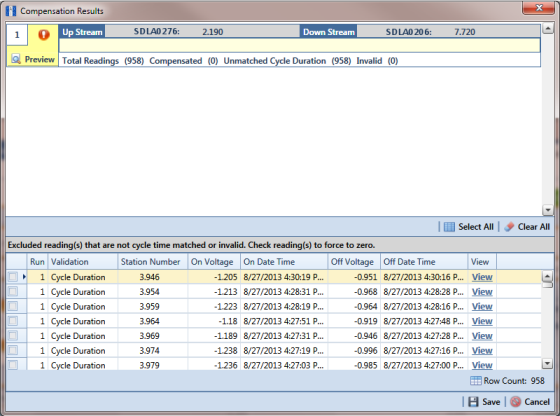

c If an error occurs during the compensation run, a warning icon displays in the Compensation Results window. A description of the error and how to resolve it also display.
In the following example, the survey measurement must be changed to zero to apply no telluric correction and successfully run compensation (Figure 14-35). See Uncompensating Test Point Inspections for information about how to apply ForceZero and Exclude to survey measurements.
Figure 14-35. Warning in Compensation Results

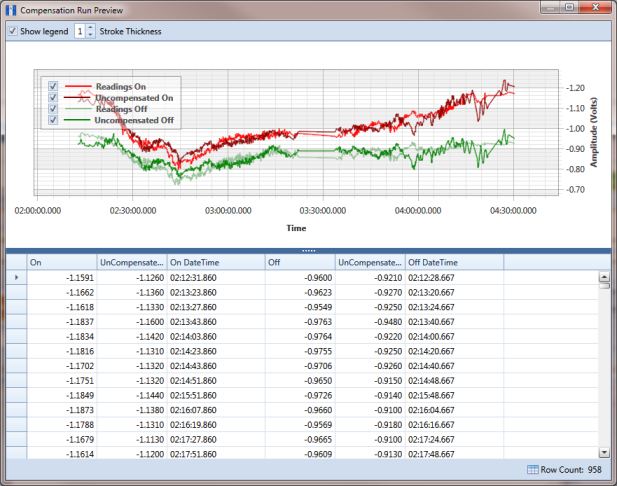

d When the compensation process completes, click Preview to view a graph of compensation results (Figure 14-36).
Figure 14-36. Compensation Run Preview
e When you finish viewing the graph, click the Windows close button to close the graph and return to the Compensation Results window.
f If you want to apply compensation results to the PCS Axis database, click Save in the Compensation Results window.
Clicking Cancel cancels the compensation process. PCS Axis closes the window and returns to the Telluric workspace. Compensation results are not applied to the PCS Axis database.
