Uncompensating Test Point Inspections
If you want to exclude one or more test point inspections in a compensation run, or want to change the inspection reading to zero (0) for one or more test points, use the Un-Compensated Inspections window in the Telluric workspace to apply ForceZero or Exclude as needed.
ForceZero applies no telluric correction to the selected test point inspection(s). Exclude removes the selected test point inspection(s) from the compensation run.
Complete the following steps to uncompensate one or more test point inspections in a compensation run:
1 Select the pipeline segment you want to work with in the
Select ROWs window. Then click
Save to close the window.
2 Open the Telluric workspace in CPDM. Click Data Entry > Edit CPDM Data > Test Point > Inspection > Telluric tab.
3 Locate the upstream and downstream SDL survey files associated with the selected pipeline segment by clicking the down arrow in the
Survey Date field and selecting a survey date using a calendar. You can also type a survey date in the field using the format MM/DD/YYYY to indicate the month, day, and year. Then click
Find (
Figure 14-20).
4 Click
Un-Compensated Inspections to open the
Un-Compensated Inspections window. Then click the down arrow in the
Action field and select
ForceZero or
Exclude (
Figure 14-26).
5 Click the check box for each test point you want to uncompensate. Click
Save to begin the uncompensate process or
Cancel to close the window and return to the
Telluric workspace.

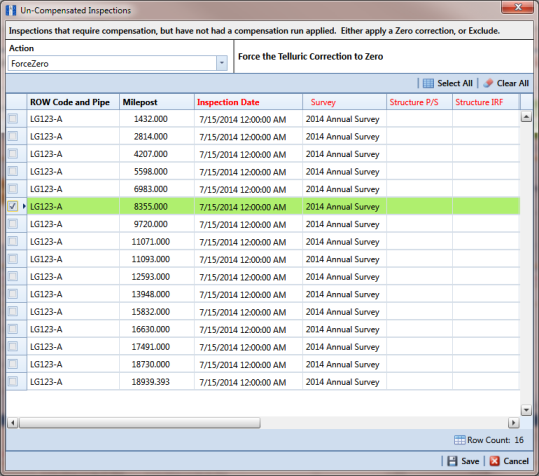

Figure 14-26. Un-Compensated Inspections
