Adding an AND Filter Group
An AND filter group is a named set of one or more filters that affect the data output in a route selected in Define Routes. Adding an AND filter group produces a subset of records that meet all filter conditions. PCS Axis processes filters in a filter group in descending order beginning with the filter at the top of the filter group.
To add an AND filter group, follow these steps:
1 Select one or more pipeline segments in the
Select ROWs window (
Figure 8-64). Click
Save to close the window.

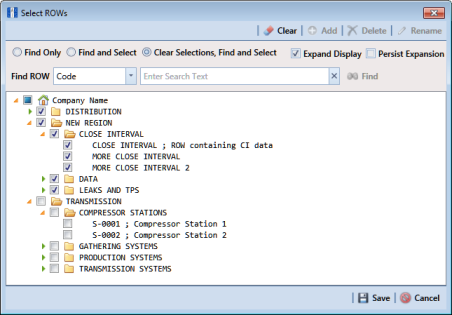

Figure 8-64. Select ROWs
2 Click
Data Entry >
Define Routes to open the
Define Routes window. Then click the down arrow in
Routes and select a route in the selection list (
Figure 8-50).
3 Click the
Customize tab
, then the
Filters button
to open the
Filters page.
4 Click
New ‘And’ Group to open a filter properties group box (
Figure 8-65).
5 Type a name for the filter group in the field Filter Group Caption.
6 Use filter selection fields to set up filter criteria. Select a PCS Axis field, operator, and one or more filter conditions.

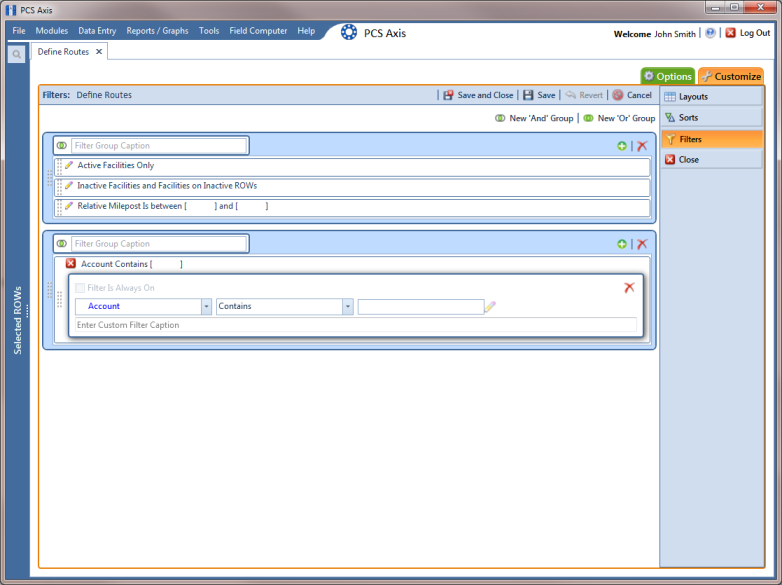

Figure 8-65. Filters
7 If you want the filter to remain on for all sessions when working with the selected route, click the check box Filter is Always On. When this check box is not selected, toggle the filter on and off in the options page using the filter’s check box.
8 Type a name for the filter in the field Enter Custom Filter Caption.
9 If you want to set up additional filter criteria for the filter group:
a Click
Add to open another filter properties group box. Then click the
edit icon to display selection fields.
b Type a name for the filter in the field
Enter Custom Filter Caption. Repeat
step 6 through
step 8 to set up filter criteria.
10 To move a filter to a different position in the filter group or a filter group to a different position in a group of filters:
a Point the mouse at the filter handle
to change the cursor to a vertical resize cursor
.
b Drag and drop the filter or the filter group to a new location.
Note: PCS Axis processes filters in descending order beginning with the filter at the top of the filter group.
11 Click
Save.
Note: Clicking the
edit icon for a particular filter opens that filter’s property settings allowing you to change settings as needed.
12 To apply one or more filters to the selected route and the
Define Routes grid (
Figure 8-66):
a Click the
Options tab
to open the options page.
b Click the check box for each filter you want to apply. Then click
Apply to save changes and return to the
Define Routes grid.

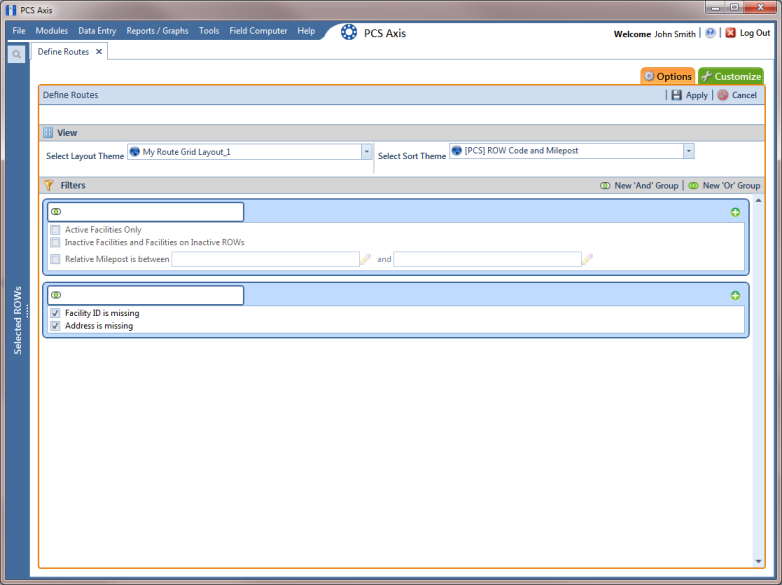

Figure 8-66. Options
