Editing a Sort Theme Addition
The following procedure explains how to perform the following tasks to edit a sort theme addition:
• add or remove one or more sort fields
• revert a sort theme addition
• delete a sort theme addition
Complete the following steps:
1 Select one or more pipeline segments in the
Select ROWs window (
Figure 8-62). Click
Save to close the window.

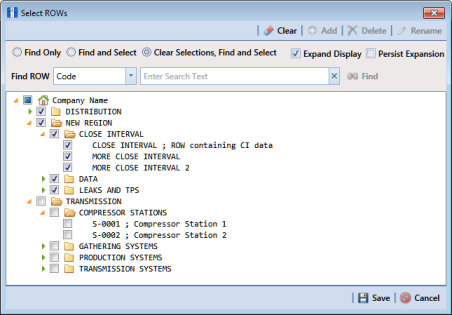

Figure 8-62. Select ROWs
2 Click
Data Entry >
Define Routes to open the
Define Routes window. Click the down arrow in the
Routes field and select a route in the selection list (
Figure 8-50).
3 Click the
Customize tab
, then the
Sorts button
to open the
Sorts page (
Figure 8-63).
Figure 8-63. Sorts
4 Click the down arrow in Select Sort Theme and select a sort theme addition.
5 To add fields and select a sort order:
a Click the toggle arrow
for a field category in the left pane to view a list of fields available for selection, such as
All Fields.
b Click the check box for each field you want to include in the theme. Then click the top arrow button
to move selected fields to the right pane. The theme includes all fields listed in the right pane.
Note: Double-clicking a field in the left pane also moves it to the right pane.
c Select a sorting method for each field listed in the right pane. To sort grid rows in ascending order, click the toggle button to select
ASC . To sort in descending order, click the toggle button to select
DESC .
d To change the order of fields listed in the right pane and subsequently in the grid, click and drag a field to a new position in the list. Or, select a field and then click the up
or down
button.
e Click
Save to save changes.
6 To remove fields in the sort theme addition:
• Select one or more fields listed in the right pane of the window, then click the bottom arrow button
. Click
Save to save changes. The sort theme includes all fields listed in the right pane.
To multi-select fields in the right pane, press the Ctrl key when selecting fields in non-consecutive order; or press the Shift key when selecting fields in consecutive order.
7 To revert a sort theme addition and restore settings prior to editing:
• Click
Revert, then click
Yes when the
Confirm Revert message displays.
8 To delete a sort theme addition:
a Click the down arrow in Select Sort Theme and select a sort theme addition.
b Click
Delete, then click
Yes when the
Confirm Delete message displays.
9 To apply a sort theme addition in the grid, follow these steps:
a Click the
Options tab
to open the options page (
Figure 8-61).
b Click the down arrow in Select Sort Theme and select the sort theme in the selection list.
c Click
Apply to apply changes and return to the grid in
Define Routes.
Note: Clicking
Cancel allows you to close the
Options page without saving changes.
