Deleting a User Defined Module
Deleting a user defined module also deletes all user defined facility types, reports, graphs, schedules, routes, and facility data associated with the module.
To delete a user defined module, follow these steps:
1 Click
File >
Select ROWs to open the
Select ROWs window
(Figure 3-82). Select one or more pipeline segments and then click
Save to close the window.

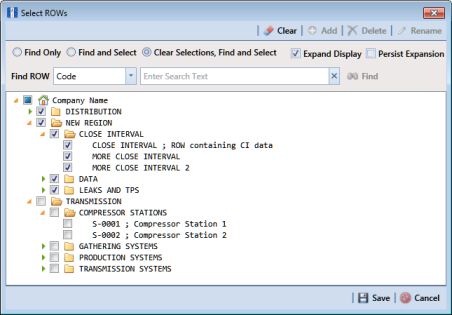

Figure 3-82. Select ROWs
2 Open CMM. Click Modules > Custom Module Management.
3 Click the
delete button for the user defined module you want to delete (
Figure 3-83).

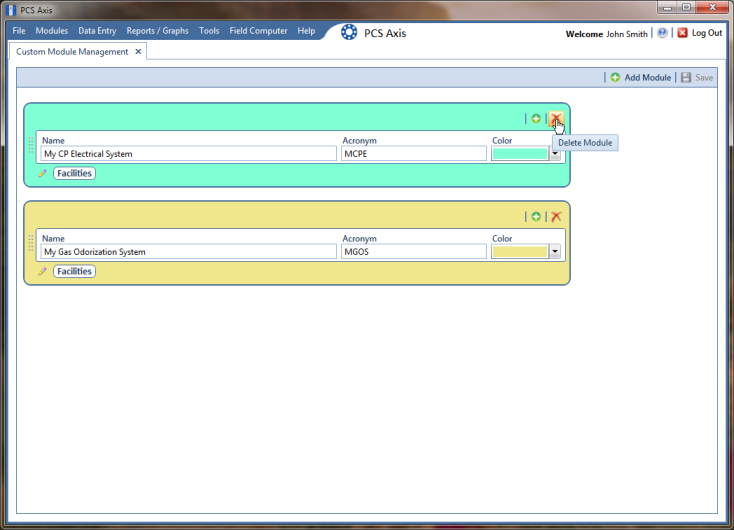

Figure 3-83. Custom Module Management
4 When the warning message
Confirm module delete opens, click
Delete to delete the module or
Cancel to cancel the operation.
5 Click
to close the
Custom Module Management window.
