Understanding a User Defined Module
A user defined module (UDM) provides the same features and functions as a system installed module. It is available for use throughout PCS Axis, such as the Modules, Data Entry, and Reports/Graphs menus; Field and UDF Customizations, Bridge, and Email Notification.
Likewise, the following features provided with a system installed module are also provided with a user defined module: Information, Inspection, and Maintenance data entry grids; layout, sorting, and filter themes; reports and graphs; and optional routes, schedules, and scheduling types for user defined facility types.

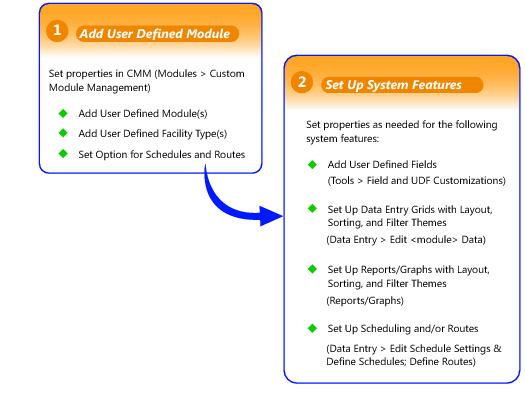

The process for adding a user defined module includes the following tasks (
Figure 3-77):
• Add a user defined module with user defined facility type(s) in Custom Module Management (Modules > Custom Module Management).
• Add one or more user defined fields (UDFs) as needed to be used throughout the
• system, such as data entry grids, reports, and graphs (Tools > Field and UDF Customizations).
• Set up data entry grids (Data Entry > Edit <module> Data); reports and graphs (Reports/Graphs); scheduling (Data Entry > Edit Schedule Settings and Define Schedules); and routes (Data Entry > Define Routes).
Figure 3-77. Workflow for Adding a User Defined Module
