Setting Field Computer Options
The Field Computer options provides access to property settings related to the Allegro Field PC. A Public caption in this Options screen indicates the associated property setting applies globally to all users and can only be changed by a SysAdmin.
If your company plans to use the Allegro Field PC with PCS Axis, complete the following steps to set up Field Computer options:
1 If the
Options window is not open, click
Tools >
Options to open the window. Then click the
Field Computer tab (
Figure 3-10).
2 To only use the Allegro digital voltmeter to record voltage readings, enable the option Require Voltage Readings By Voltmeter. Enabling this option prevents manual data entry of voltage readings on the Allegro.
3 (SysAdmin only) For property settings accompanied by a
Private check box, check or uncheck the check box based on your company’s requirements. When the
Private check box is checked, the currently logged in user can change the associated property setting. For more information, see
Understanding Public and Private Property Settings.
4 Click
Save to save changes.

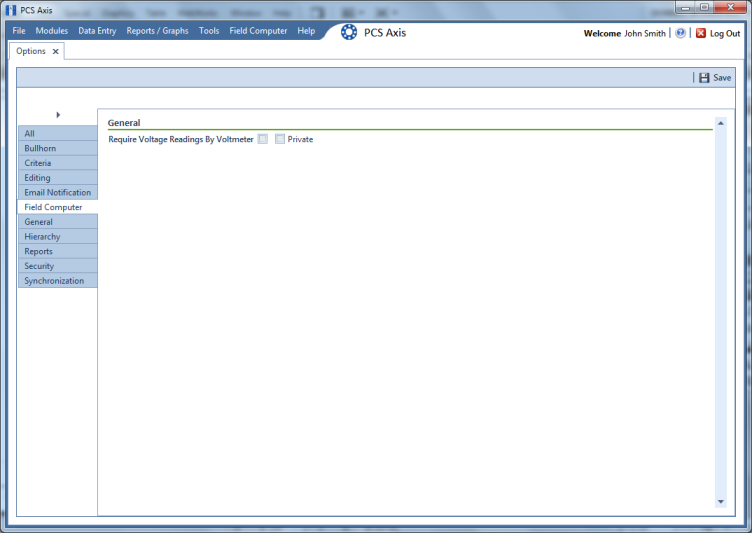

Figure 3-10. Field Computer Options
