Adding a Schedule Definition Addition
To add a schedule definition addition, follow these steps:
1 Click
Data Entry >
Define Schedules to open the
Define Schedules window (
Figure 9-12).
2 Click Add and then type a name for the addition in the Schedule Name field. The field supports up to 120 characters including spaces.
3 Select a schedule type listed in the Available Schedule Types pane, such as Periodic Bond-Critical. To select multiple schedule types, press the Ctrl key on the computer keyboard while selecting each schedule type.
4 Click the top arrow button
to move the schedule type(s) to the
Selected Schedule Types pane (
Figure 9-12). Click
Save. The addition is now available in the
Select Schedule Definition selection list.
Note: Double-clicking a schedule type in the Available Schedule Types pane also moves it to the Selected Schedule Types pane.

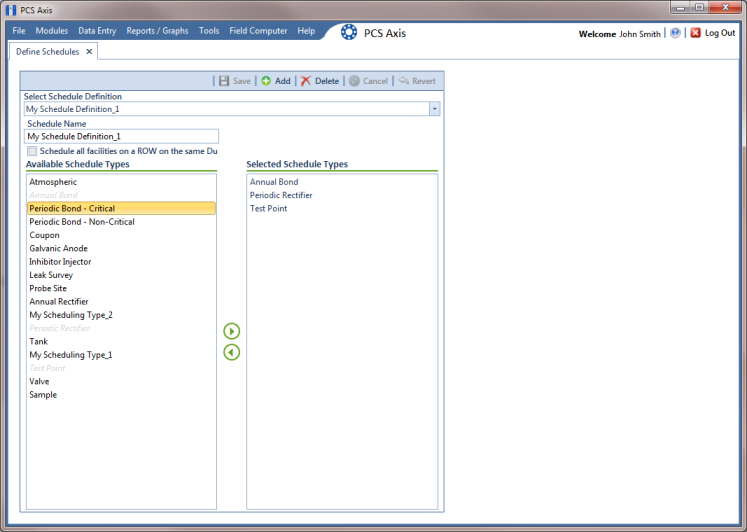

Figure 9-12. Adding a Schedule Definition Addition
