Adding Timed Reading Fields in the Inspection Grid
Complete the following steps to add timed reading fields in a layout theme and then apply the theme to the Test Point Inspection data entry grid:
1 If the
Test Point Inspection data entry grid is not visible, click the
Test Point button
and then the
Inspection tab
.
2 Click the
Customize tab
to display the
Layouts page.
3 Select a layout theme. Click the down arrow in Select Layout Theme and select a theme in the selection list.
4 Double-click
Test Point Inspection Fields in the left pane of the window to view a list of fields available for selection (
Figure 8-19).

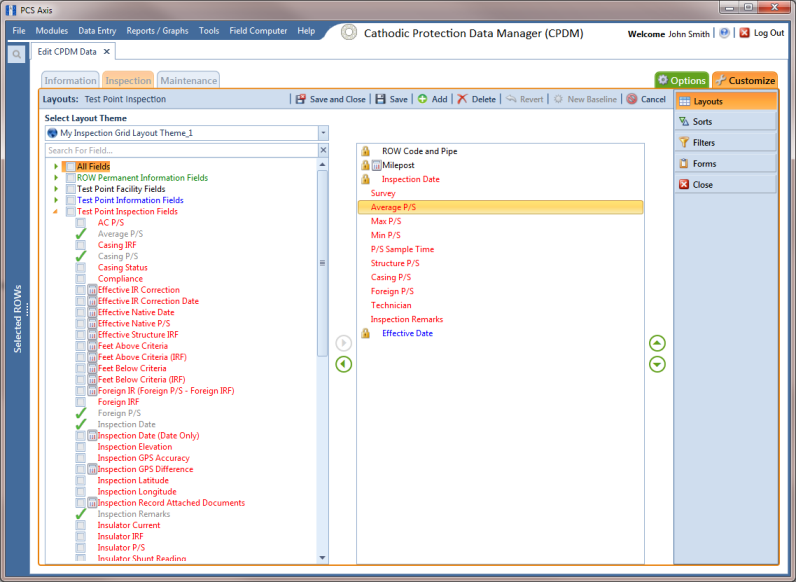

Figure 8-19. Layouts
5 Add the following list of timed reading fields in the layout theme. To add a field, double-click a timed reading field listed in the left pane to move the field to the right pane. Add other fields as required. The layout theme includes all fields listed in the right pane of the Layouts page.
• Average P/S
• Max P/S
• Min P/S
• P/S Sample Time
6 Click
Save, then click the
Options tab
to open the options page (
Figure 8-20).

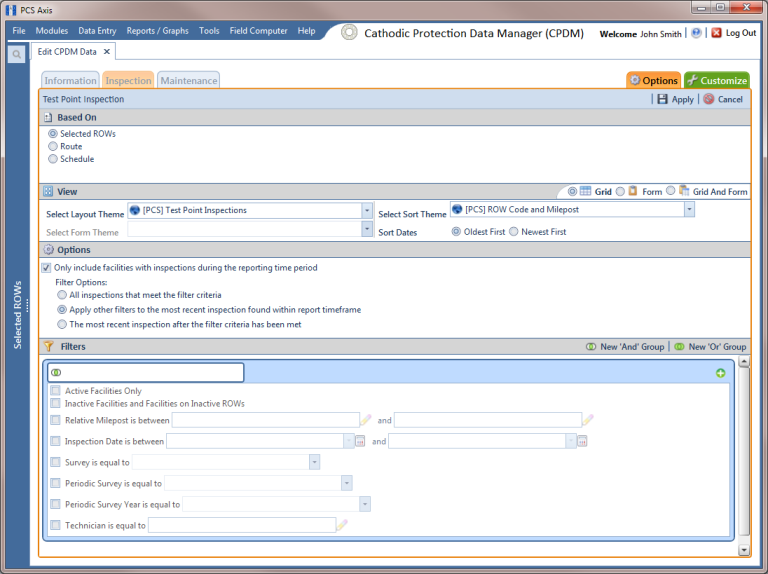

Figure 8-20. Options
7 Apply the layout theme to the data entry grid. Click the down arrow in the field Select Layout Theme and select the layout theme with timed reading fields.
8 Click
Apply to save and apply changes. PCS Axis closes the options page and returns to the
Test Point Inspection data entry grid.
