Working with the Target Structure P/S Field
The Target Structure P/S field is a system-generated field available in the CPDM Test Point Inspection grid. The field is gray to indicate its contents are system-generated. Target Structure P/S is used by PCS Axis to calculate a target reading with a minimum pipe-to-soil (P/S) for meeting criteria. The target reading is calculated based on your selected protection criterion and information in other fields (Table 7-1).
The default setting for Target Structure P/S is -0.850. To change the setting, follow these steps:
1 Click the Select ROWs button to open the Select ROWs window (Figure 7-140). Select one or more pipeline segments with facilities you want to work with, then click Save to close the window.

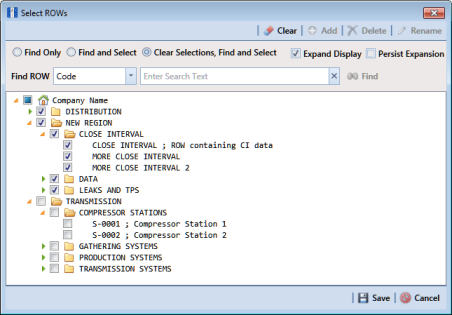

Figure 7-140. Select ROWs
2 Open the Edit CPDM Data window. Click Data Entry > Edit CPDM Data.
3 Open the Test Point Information grid. Click the Information tab and then the Test Point button (Figure 7-141).

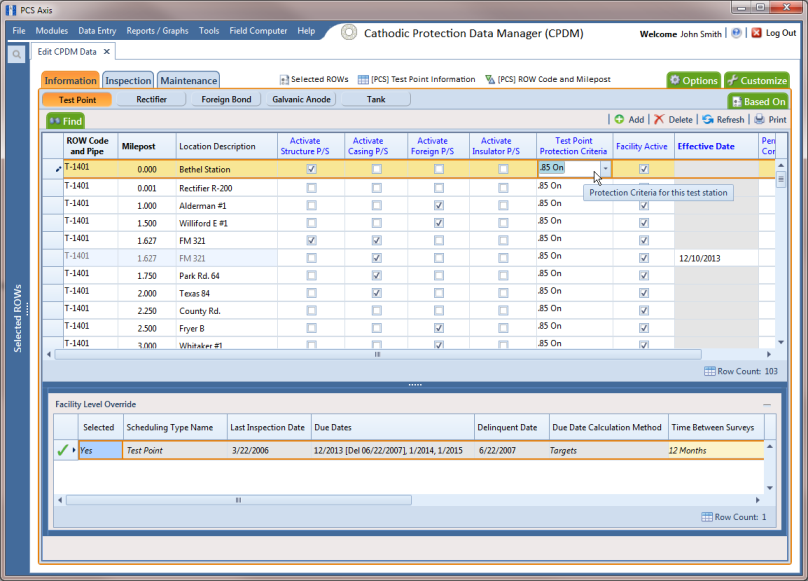

Figure 7-141. Test Point Information Grid
4 If you want to collapse the Selected ROWs panel to view more of the grid, click the Selected ROWs bar. Clicking the bar again expands the panel.
5 Select the field Test Point Protection Criteria for a test point in the grid. Click the down arrow and select a protection criterion in the selection list. Repeat this step for other test points as needed.
6 Set up other fields used to calculate Target Structure P/S according to the information in Table 7-1. Based on how your data entry grids are arranged, fields may be in the Test Point Information or Inspection grid.
Table 7-1describes how Target Structure P/S is calculated for each protection criterion. Each protection criterion identifies fields required for calculating Target Structure P/S. Equations with pipe brackets ( | ) represent absolute values.

Table 7-1. Calculating Target Structure P/S
Protection Criterion
Target Structure P/S Calculation
.85 On (default)
–0.850 V
.85 IRF
–0.850 – | Structure P/S – Structure IRF |
Example: –0.850 – | –1.200 – –0.800 | = –1.250
Note: The value in the field User IR Correction (if any) is used instead of the | Structure P/S – Structure IRF | equation.
100 mV
Native P/S – 0.100 – | Structure P/S – Structure IRF |
Example: –0.550 – 0.100 – | –1.200 – –0.800 | = –1.050
Note: The fields Native P/S and Native Date can be included with any survey regardless of how old. PCS Axis always finds the most recent native reading and date, and the most recent pair of structure “on/off” readings (Structure P/S and Structure IRF). This means if the current-year survey includes only “on” readings, PCS Axis uses the last “on/off” reading and native date. This is the case until a new “on/off” reading is taken.
300 mV
This is no longer recognized by NACE RP0169 or DOT regulations.
Ref Read
Add the field Test Point Reference P/S in the grid when using “Ref Read” (reference reading) protection criterion.
Ag/AgCl
Functions the same as “.85 On” but uses –0.800V instead. Use this protection criterion for off-shore (saltwater) or tank “on” readings when using silver/silver chloride half cell.
The field Target Structure IRF is used for a facility to meet criteria and the calculated minimum value for the Structure IRF field.
.85 On criteria
Calculation: Target Structure IRF = Null
.85 IRF (off) and 100mV criteria
Structure IRF can be compared to Target Structure IRF to determine if the inspection is in compliance. If Structure IRF is more negative than Target Structure IRF, the test point is in compliance.
• Calculation for .85 IRF Criteria: Target Structure IRF = -.85.
Target Structure P/S is calculated for an inspection that has a Structure IRF.
• Calculation for 100mV Criteria: Target Structure IRF = Native P/S - 0.1. Native Date must be added in the grid.
Target Structure IRF is calculated for an inspection that has a Structure IRF.
Native P/S = Most recent Native P/S before the date of the Structure P/S and Structure IRF.
.85 On
Calculation: Target Structure IRF = Null
300 mV
Calculation: Target Structure IRF = Null
Ref Read
Calculation: Structure P/S = Null
