Shifting Station Numbers
Use Shift to shift a range of station numbers by a specified number of feet (or meters) or in the direction of an existing facility. Use the option labeled Distance when shifting station numbers by feet or meters. To shift a range of station numbers in the direction of an existing facility, use the option labeled Shift To Facility.
Using Shift allows you to add or subtract a fixed distance to station numbers for a range of readings in a survey. This function is typically used when station numbers are not known when performing the survey and they need to be shifted to correct station numbers.
To shift station numbers, follow these steps:
1 Click the
Select ROWs button
to open the

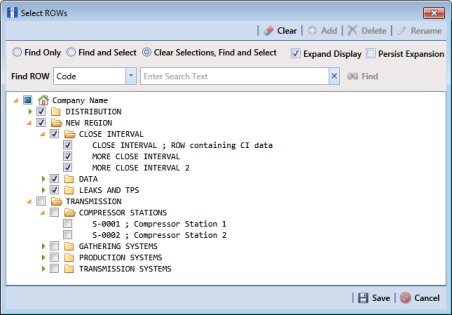

Select ROWs window (
Figure 7-77). Select the pipeline segment(s) with the facilities you want to work with, then click
Save to close the window.
Figure 7-77. Select ROWs
2 If the ISM module is not open, click Modules > Indirect Survey Manager (ISM).
3 Click
Data Entry >
Edit ISM Data to open the ISM data entry grid. Then click a button labeled with the type of continuous survey data you want to work with, such as the
CIS button
(

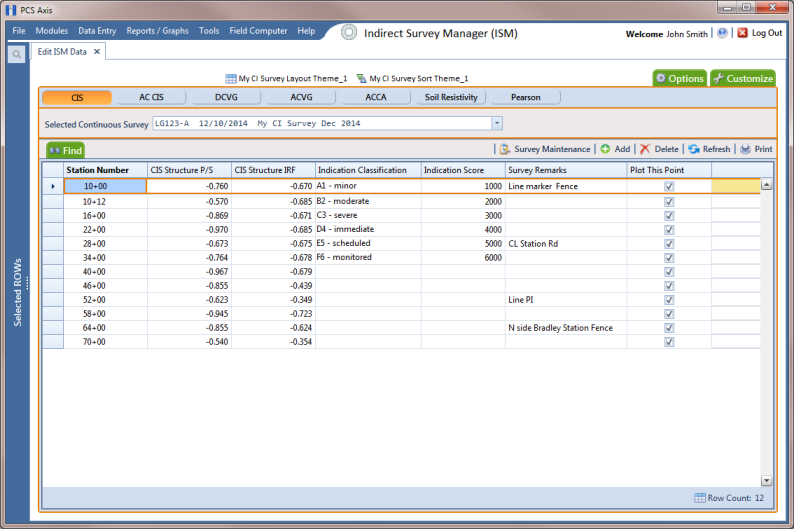

Figure 7-78).
Figure 7-78. Edit ISM Data
4 Select a survey folder with survey readings you want to shift. Click the down arrow in Selected Continuous Survey and select a survey folder in the selection list.
Note: If you want to collapse the Selected ROWs panel, click the Selected ROWs bar. Clicking the bar again expands the panel.
5 Click
Survey Maintenance to open the
Survey Maintenance dialog box. Then click
Shift (

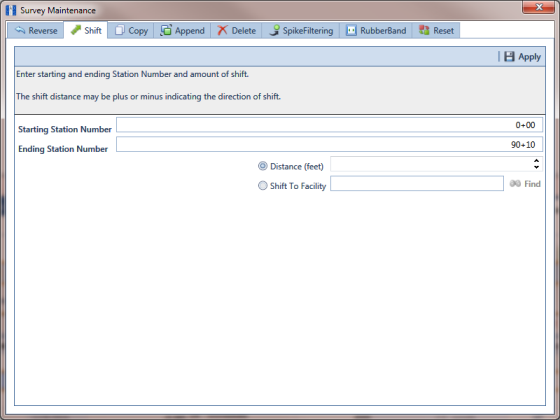

Figure 7-79).
Figure 7-79. Shift Station Numbers
6 Type a starting station number in the field Starting Station Number and an ending station number in the field Ending Station Number.
7 Select the Distance option if it is not selected.
8 Specify a shift distance. Type or select the number of feet (or meters) in the
Distance field. Clicking the
up arrow increases the value; clicking the
down arrow decreases it.
9 If you want to shift station numbers in the direction of an existing facility location, follow these steps:
a Select the option Shift To Facility.
b Type a facility location in the
Shift To Facility field or select one in the
Select Facility dialog box. To select a facility location, click
Find to open the
Select Facility dialog box and select a facility in the grid. Then click
Save (

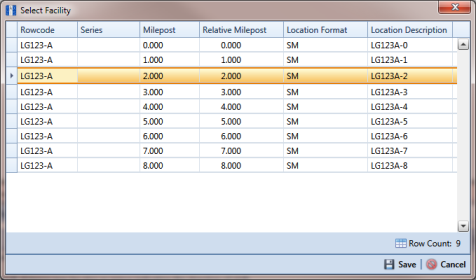

Figure 7-80).
Figure 7-80. Select Facility
Note: Clicking the Windows close button
cancels the operation and closes the dialog box.
10 Click
Apply to shift station numbers and update the data entry grid.
