Adding a Facility Maintenance Record
Information in this section covers the following scenarios for adding a record in the Maintenance grid:
• adding a maintenance record for an existing facility (
step 7)
• adding a new facility with a maintenance record (
step f)
Complete the following steps:
1 Click the
Select ROWs button
to open the
Select ROWs window (
Figure 7-20).

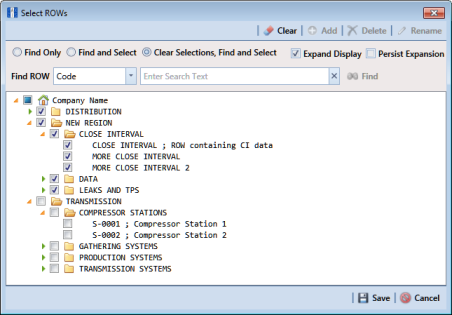

Figure 7-20. Select ROWs
2 Select one or more pipeline segments with facilities you want to work with, then click
Save to close the window.
3 Open the
Edit <module> Data window. For example, click
Data Entry >
Edit CPDM Data to open the
Edit CPDM Data window (
Figure 7-21).

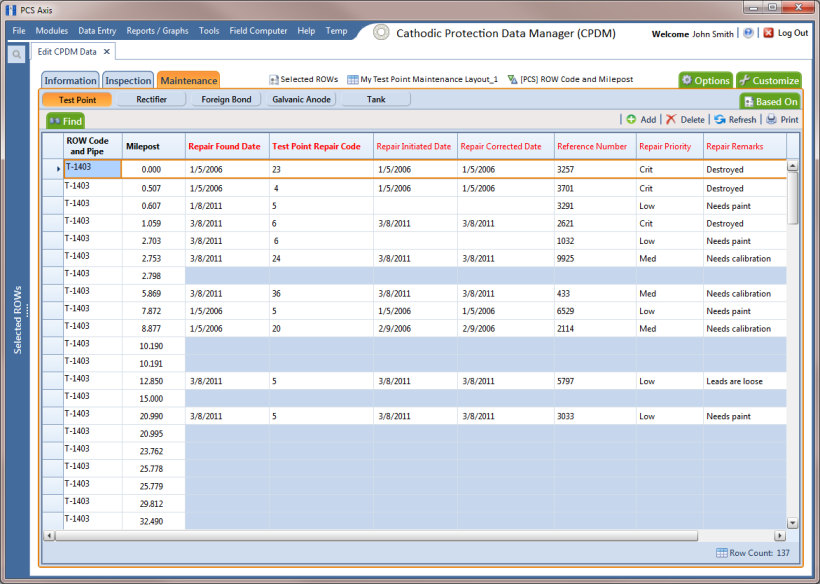

Figure 7-21. Maintenance Grid
4 Open the
Maintenance grid for a facility type. For example, click the
Maintenance tab
and then a facility type button, such as
Test Point .
Note: Although the CPDM module and test point facility type are both referenced in this procedure, instructions apply to any PCS Axis module and facility type.
5 If you want to collapse the Selected ROWs panel to view more of the grid, click the Selected ROWs bar. Clicking the bar again expands the panel.
6 Click
Add to open the
Add Record dialog box (
Figure 7-22). Then continue with one of the following steps:
Hint: Alternatively, you can use keyboard shortcut keys to add records. Press F4 to add an maintenance record for an existing facility in the grid. Press F8 to add a new facility in the grid with an maintenance record.
• To add a maintenance record for an existing facility in the grid, continue with
step 7.
• To add a new facility in the grid with a maintenance record, continue with
step f.

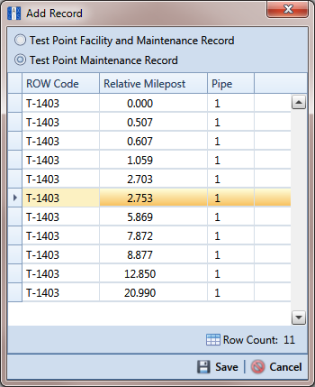

Figure 7-22. Add Record
7 To add a maintenance record for an existing facility in the grid:
a Click the option
Test Point Maintenance Record. Then select a facility in the list of facilities. For example, the facility at
Milepost 2.753 (
Figure 7-22).
b Click
Save to display required field(s) for data entry (
Figure 7-23). Required fields are identified with the
icon, such as
Test Point Repair Code.

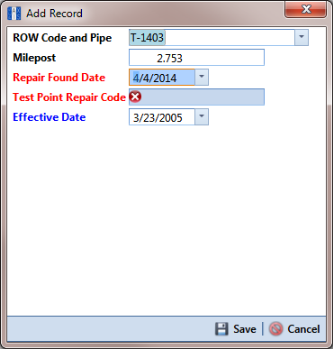

Figure 7-23. Add Record
c Type a date in the field Repair Found Date using the format MM/DD/YYYY to indicate the month, day, and year. Or click the down arrow in the field and select a date using a calendar.
d Type a repair code in the field Test Point Repair Code. Repair code is a designation used by your company to identify the type of repair. The field accepts up to 15 alphanumeric characters including special characters such as the pound sign (#), asterisk (*), or hyphen (-).
e Click
Save to close the dialog box and add a maintenance record in the grid for the existing facility (
Figure 7-24).

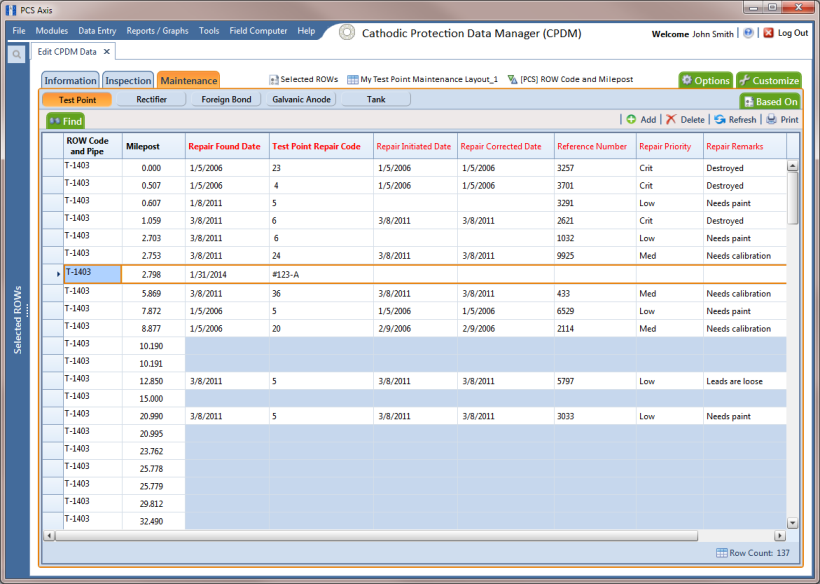

Figure 7-24. Maintenance Grid
f Provide other maintenance data as needed, such as Repair Initiated Date, Repair Corrected Date, Repair Priority, and Repair Remarks.
g Click
Refresh to update the grid.
8 To add a new facility in the grid with a maintenance record:
a Click the option
Test Point Facility and Maintenance Record in the
Add Record dialog box (
Figure 7-25).

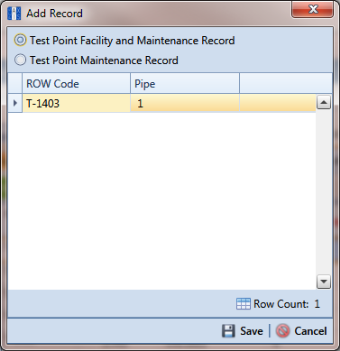

Figure 7-25. Add Record
b Select a pipeline in the dialog box that you want to add a new facility and maintenance record. For example, pipeline
T-1403 (
Figure 7-25).
c Click
Save to display required field(s) for data entry (
Figure 7-26). Required fields are identified with the
icon, such as
Milepost and
Test Point Repair Code.

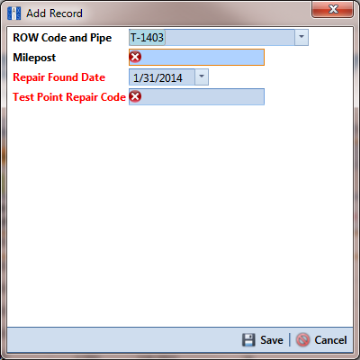

Figure 7-26. Add Record
d Type the facility milepost number in the Milepost field. Based on your system configuration, the Milepost field may have a different caption for User Location Name, such as Station Number or other type of identifier.
e Type a date in the field Repair Found Date using the format MM/DD/YYYY to indicate the month, day, and year. Or click the down arrow in the field and select a date using a calendar.
f Type a repair code in the field Test Point Repair Code. Repair code is a designation used by your company to identify the type of repair. The field accepts up to 15 alphanumeric characters including special characters such as the pound sign (#), asterisk (*), or hyphen (-).
g Click
Save to close the dialog box and add the new facility with an maintenance record in the grid (
Figure 7-27).

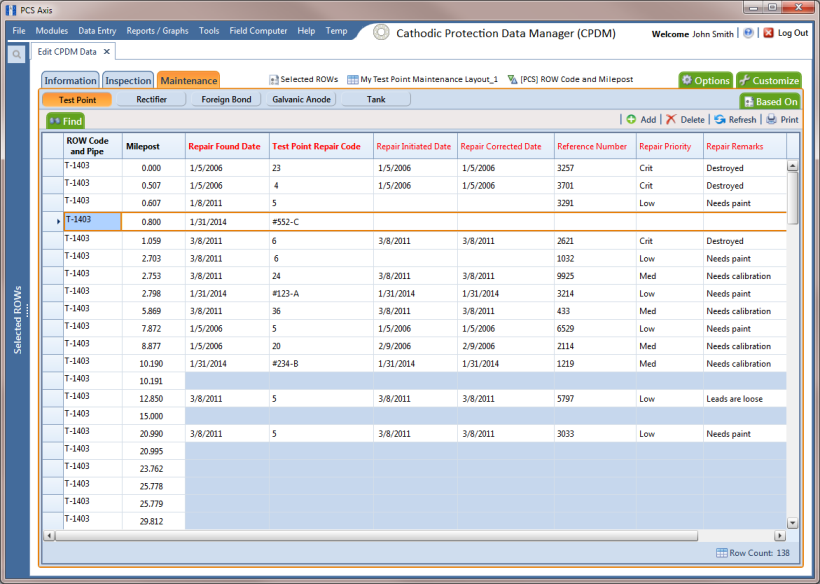

Figure 7-27. Maintenance Grid
h Provide other maintenance data as needed, such as Repair Initiated Date, Repair Corrected Date, Repair Priority, and Repair Remarks.
i Click
Refresh to update the grid.
