Viewing the Field Computer Log
The field computer log includes a Send Log and Receive Log. The Send Log lists the facility records sent to the Allegro with the date and time records were processed. Likewise, the Receive Log identifies facility records received in PCS Axis from the Allegro, as well as the date and time they were received. Only those facility records updated by the Allegro are processed and included in the Receive Log.
You can use information in the field computer log to:
• verify which facility records have been sent and received
• compare both logs to verify all facilities that were inspected contain survey data
• troubleshoot issues if a problem occurs during data transfer
To view the field computer log, follow these steps:
1 Click Field Computer > Log to open the Field Computer Log window.
2 Click the
Receive Log tab to view facility records received in PCS Axis from the Allegro Field Computer (
Figure 13-48).

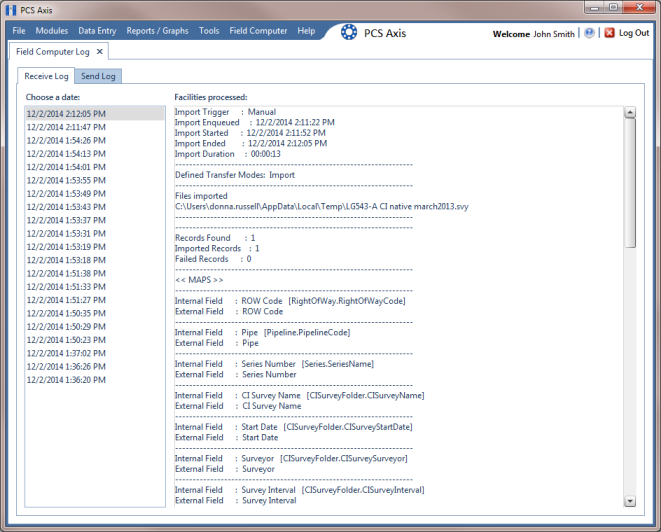

Figure 13-48. Field Computer Log / Receive Log
3 Click the
Send Log tab to view facility records sent to the Allegro (
Figure 13-49).

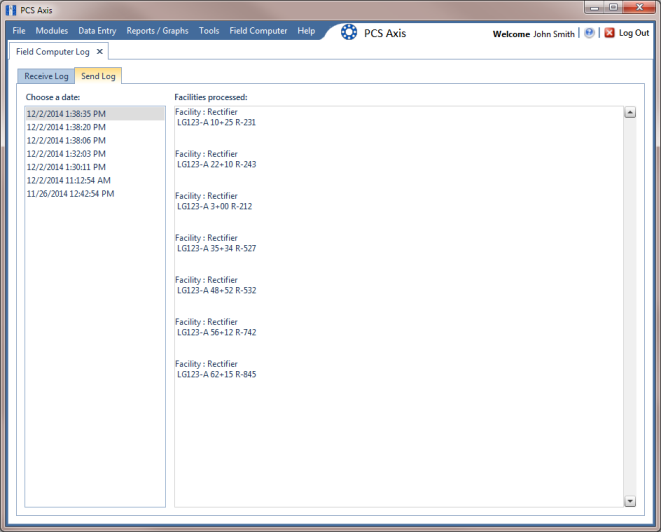

Figure 13-49. Field Computer Log / Send Log
